1--930MHz 2.0W 2W RF Broadband Power Amplifier Module
3.5
Neutral
Save R237
Buying option
store
takealot.com
Best Deal
In stock
−25%
save R100.68
R299
The Story

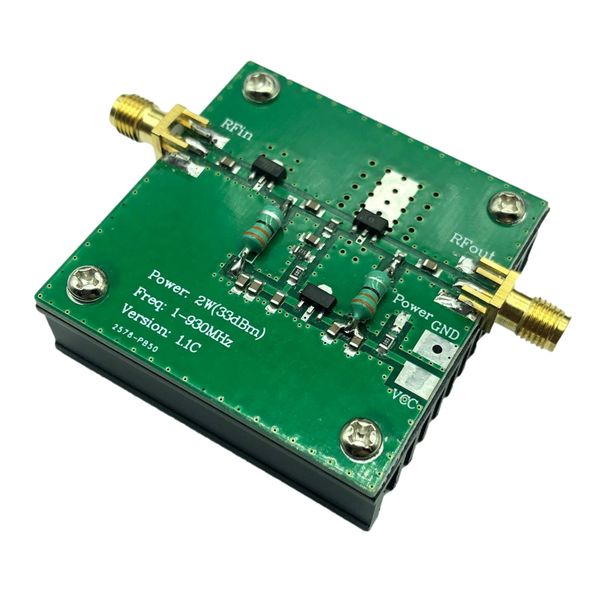

This broadband RF power amplifier module covers 1-930MHz with a maximum output of 2W (33dBm) at low frequencies. Operating at 12V DC and drawing 300-400mA, it features an SMA female connector and compact ABS housing (50x50x15mm). Ideal for RF signal boosting in experimental setups, ham radio, or wireless projects.
add_circle The Upside
- check Broadband coverage from 1MHz to 930MHz
- check Decent output power for its size
- check Simple 12V DC operation
remove_circle The Downside
- close Output power drops at higher frequencies (0.8W at 1000MHz)
- close No heatsink or cooling included
- close Limited documentation or support
Specifications & features
Key features
- check_circle Wide frequency range: 1-930MHz
- check_circle Maximum output power: 2W (33dBm) at low frequencies
- check_circle Input power: 1mW (0dBm)
- check_circle SMA female RF connector
- check_circle Compact size: 50x50x15mm
Specifications
Current Consumption
300-400mA
Dimensions
50 x 50 x 15mm
Frequency Range
1-930MHz
Input Power
1mW (0dBm)
