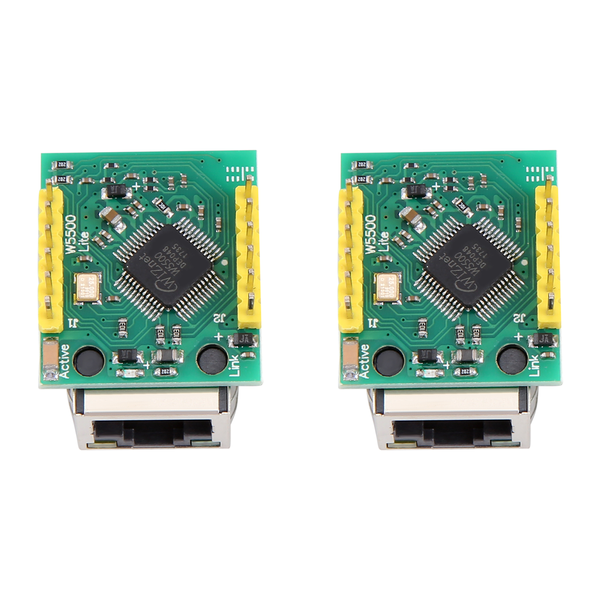

2PCS USR-ES1 W5500 Chip New SPI to LAN/ Ethernet TCP/IP Mod Module
Buying option
takealot.com
Best Deal
In stockThe Story
The USR-ES1 is a compact Ethernet module featuring the W5500 chip, which implements the TCP/IP protocol stack in hardware. With an SPI interface and 3.3V TTL levels, it offloads network processing from the host MCU, improving system efficiency and reliability. Ideal for embedded systems requiring high-speed Ethernet connectivity, this module includes 32KB of on-chip RAM for data buffering and is compatible with WIZ820io pinout.
add_circle The Upside
- check Offloads network processing from main MCU
- check High-speed SPI interface
- check Compact size (26x24x17mm)
remove_circle The Downside
- close Requires stable 3.3V power supply with at least 200mA
- close Limited documentation for beginners
- close Only 2 modules per pack
Specifications & features
Key features
- check_circle W5500 chip with hardware TCP/IP stack (TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE)
- check_circle SPI interface up to 80MHz
- check_circle 3.3V TTL level, 200mA minimum current
- check_circle 32KB on-chip RAM for data buffers
- check_circle Compatible with WIZ820io pinout
Specifications
Chipset
W5500
Current Consumption
≥200mA
Dimensions
26 x 24 x 17 mm
Interface
SPI (up to 80MHz)
