63A Earth Leakage Circuit Breaker 30mA - Single Phase -Black
Buying option
takealot.com
Best Deal
In stockThe Story

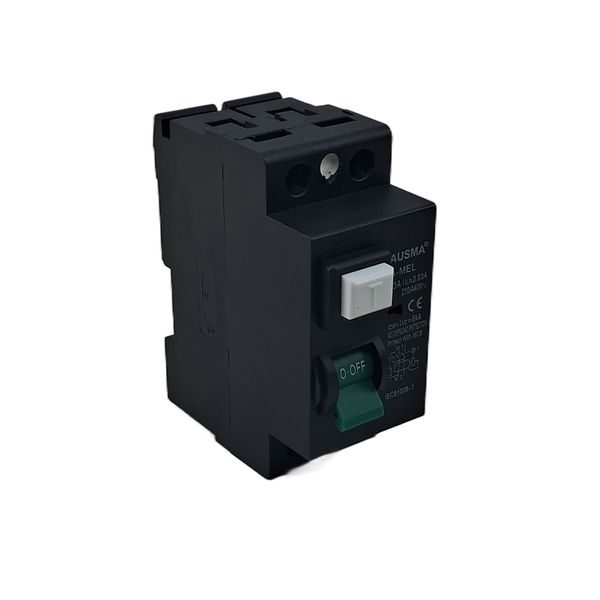

This 63A Earth Leakage Circuit Breaker (ELCB) provides essential protection against electric shock and fire hazards caused by current leakage. Designed for residential, commercial, and industrial applications, it instantly disconnects the power supply when leakage is detected, ensuring safety for people and equipment. With a rated current of 63A and 30mA sensitivity, it supports high-power loads up to 27.7kW and complies with IEC61008-1 standards.
add_circle The Upside
- check Protects against electric shock and fire risk
- check Supports high-power loads up to 27.7kW
- check Easy installation with visible ON/OFF indication
remove_circle The Downside
- close No overload protection (must be used with MCB)
- close Limited to earth leakage protection only
- close May require professional installation
Specifications & features
Key features
- check_circle Rated current: 63A
- check_circle Rated residual current: 30mA
- check_circle Rated voltage: 230V / 440V AC
- check_circle Breaking capacity: 6kA
- check_circle DIN rail mount design with test button
Specifications
Breaking Capacity
6kA
Compliance
IEC61008-1
Dimensions
9cm (H) x 7.5cm (D) x 4cm (W)
Maximum Load Capacity
14.5 kW @ 230V, 27.7 kW @ 440V
