Allbro- Utilec UT 9 Standard general purpose polyester enclosure (GRP)
Buying option
takealot.com
Best Deal
In stockThe Story

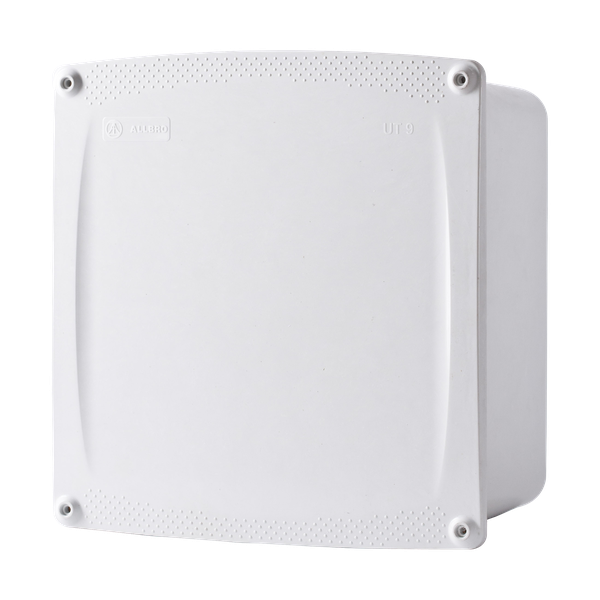

The Allbro Utilec UT 9 is a robust general-purpose polyester enclosure made from Dough Moulding Compound (DMC), designed for demanding industrial environments. With an IP65 rating when using the screw lid, it offers excellent protection against dust and water ingress, while its IK8 impact rating ensures durability. This halogen-free enclosure features external mounting feet and operates reliably in temperatures from -50°C to +200°C.
add_circle The Upside
- check High temperature tolerance and flame retardant for safety
- check Versatile mounting options with external feet
- check Long UV life suitable for outdoor use
remove_circle The Downside
- close Large size may be overkill for small components
- close Screw lid required for highest IP rating, adding assembly time
- close Limited aesthetic appeal for consumer-facing applications
Specifications & features
Key features
- check_circle Material: DMC (Dough Moulding Compound) with UL94 V0 flammability rating
- check_circle IP65 protection with screw lid, IP54 with slide lid
- check_circle IK8 impact resistance
- check_circle Operating temperature range: -50°C to +200°C
- check_circle Halogen-free and UV resistant for 25+ years direct exposure
Specifications
Operating Temperature
-50°C to +200°C
Glow Wire Capability
960°C
External Dimensions
359 x 348 x 176 mm
Internal Dimensions
310 x 310 x 165 mm
