Antwire (POW00225) DC-DC Buck Converter 4-38V to 1.25-36V Power Supply
Buying option
takealot.com
Best Deal
In stockThe Story

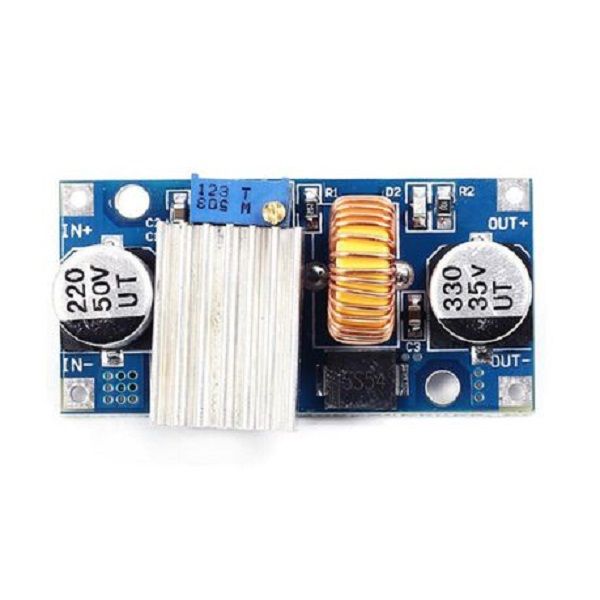

This compact DC-DC buck converter from Antwire efficiently steps down input voltages from 4-38V to an adjustable output of 1.25-36V, delivering up to 5A of current. Featuring the XL4015 chip with short circuit protection and up to 96% efficiency, it's ideal for power supply projects, battery charging, and voltage regulation. The onboard potentiometer allows easy output adjustment, and the power indicator light shows module status.
add_circle The Upside
- check Wide input and output voltage range for versatile applications
- check High efficiency reduces power loss and heat generation
- check Compact size fits easily into projects
remove_circle The Downside
- close No built-in overcurrent protection beyond short circuit
- close Output voltage adjustment requires manual potentiometer tuning
- close May require additional heatsinking for sustained 5A output
Specifications & features
Key features
- check_circle Input voltage range: DC 4-38V
- check_circle Output voltage adjustable: 1.25-36V
- check_circle Maximum output current: 5A
- check_circle High efficiency up to 96%
- check_circle Short circuit protection with XL4015 chip
Specifications
Board Dimensions
49 x 26 x 19 mm
Chip
XL4015
Efficiency
Up to 96%
Input Voltage
DC 4-38V
