Arduino TSX00083 Development Board, Arduino Protoshield Rev 3
Buying option
takealot.com
Best Deal
In stockR1,425
The Story

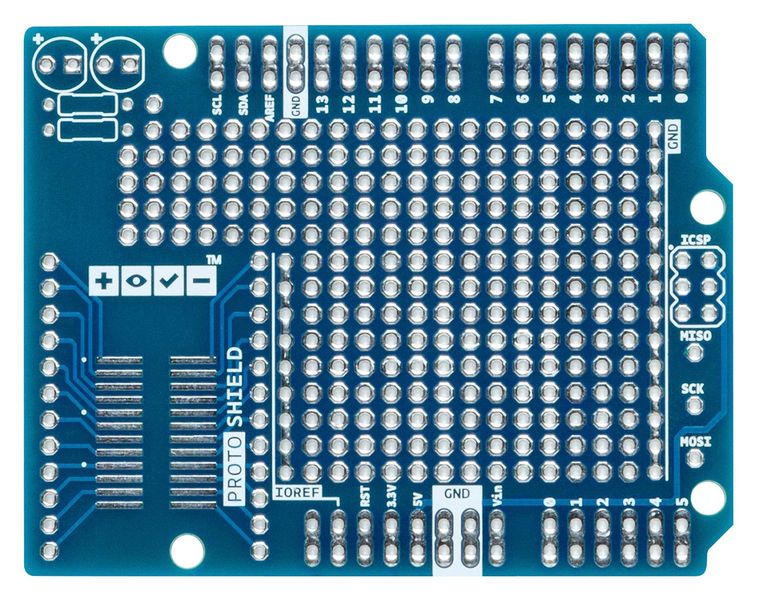

The Arduino ProtoShield Rev 3 is a versatile prototyping shield that makes it easy to design and test custom circuits with your Arduino board. It features dedicated areas for both through-hole and surface-mount components, plus convenient power lines, LED pads, and SPI signal breakouts for seamless integration with boards like the Arduino Zero.
add_circle The Upside
- check Simplifies custom circuit design and prototyping for Arduino projects
- check Versatile with support for both through-hole and surface-mount components
remove_circle The Downside
- close Requires soldering skills for permanent component attachment
- close Mini breadboard for solderless operation not included
Specifications & features
Key features
- check_circle Compatible with Arduino pinout and ICSP connector
- check_circle Dedicated prototyping area for TH and SMD components (up to 24-pin SOIC)
- check_circle Includes IOREF and GND power lines, LED pads, and SPI signal breakout pads
- check_circle Allows solderless operation with mini breadboard (not included)
Specifications
Compatibility
Arduino boards with standard pinout
Included Features
IOREF/GND power lines, LED pads, SPI breakout pads
Model Number
TSX00083
Prototyping Area
TH and SMD (24-pin SOIC max)
