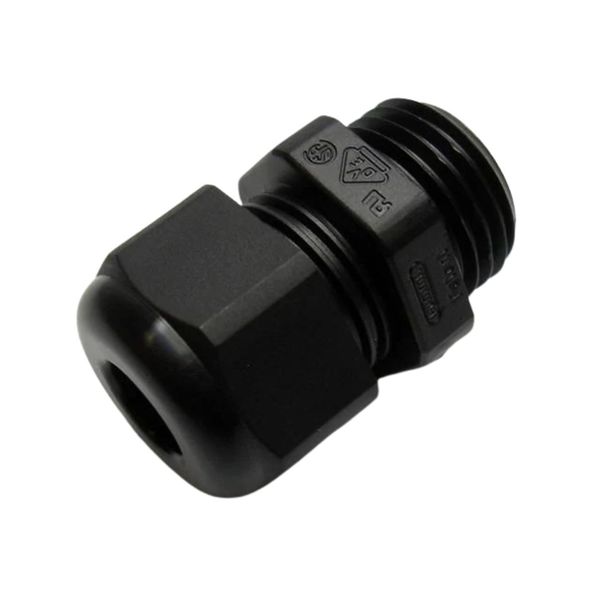

CGP-M16X1,5-07 Polyamide Cable Gland M16x1.5 - For 5-10mm Cable
Buying option
takealot.com
Best Deal
In stockThe Story
This polyamide cable gland provides a secure, flame-retardant seal for cables in electrical enclosures. Designed for cable diameters from 5 to 10mm with an M16x1.5 metric thread, it ensures compatibility with standard junction boxes and equipment. Rated UL 94 V0 and halogen-free, it offers reliable performance in temperatures from -40°C to +100°C.
add_circle The Upside
- check Flame-retardant material enhances safety
- check Wide cable compatibility for various projects
- check Easy installation with standard tools
remove_circle The Downside
- close Limited to cable diameters 5-10mm only
- close Polyamide may not be as durable as metal in harsh environments
- close No integrated sealing gasket mentioned
Specifications & features
Key features
- check_circle Cable range: 5-10mm
- check_circle Thread: M16 x 1.5 male
- check_circle Material: UL 94 V0 polyamide, flame-retardant and halogen-free
- check_circle Temperature range: -40°C to +100°C
- check_circle Wrench size: 22mm
Specifications
Body Diameter
10.5mm
Cable Range
5 - 10mm
Material
UL 94 V0 rated polyamide
Overall Height
78mm
