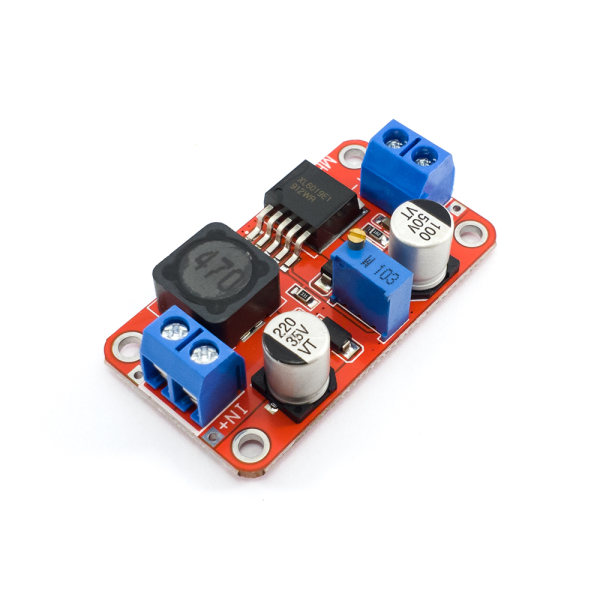

DC-DC Boost Converter - XL6019 - Dimensions: ~(50mm x 28mm x 13mm)
Buying option
takealot.com
Best Deal
In stockThe Story
The XL6019 Boost Converter is a high-efficiency step-up DC-DC module that boosts input voltages from 3-35V to a regulated 5-40V output, delivering up to 5A. Ideal for powering LED strips, battery-powered systems, and embedded electronics, it features built-in protection against reverse polarity, short circuits, and overheating. With up to 94% efficiency and a compact 50x28x13mm design, it's a reliable choice for your power conversion needs.
add_circle The Upside
- check Versatile input and output ranges suit many applications
- check High efficiency reduces power loss and heat
- check Compact size fits easily into projects
remove_circle The Downside
- close Output ripple may require additional filtering for sensitive loads
- close No built-in voltage display or adjustment knob (requires external potentiometer)
- close Heat sink may be needed for continuous high-current operation
Specifications & features
Key features
- check_circle Wide input voltage range: 3.0-35VDC
- check_circle Adjustable output voltage: 5.0-40VDC
- check_circle Maximum output current: 5A
- check_circle High conversion efficiency up to 94%
- check_circle Built-in protections: reverse polarity, short circuit, over temperature
Specifications
Conversion Efficiency
Up to 94%
Dimensions
50mm x 28mm x 13mm
Input Voltage Range
3.0 - 35VDC
Max Output Current
5A
