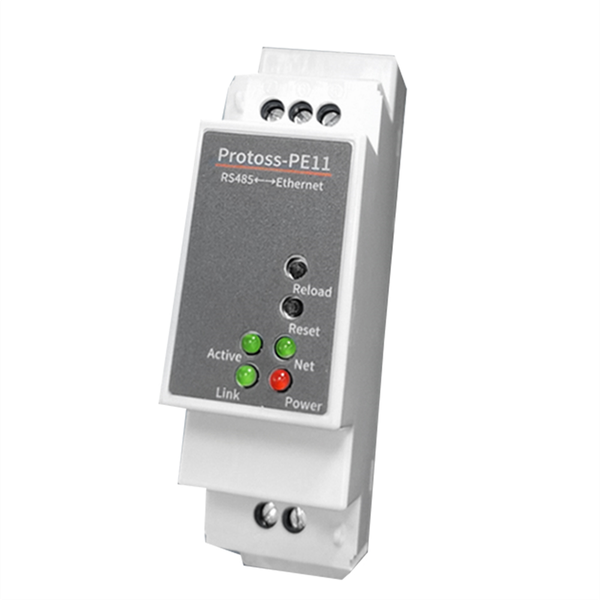

DIN-Rail Serial Port RS485 to Ethernet Converter Server
Buying option
takealot.com
Best Deal
In stockR1,044
The Story
This DIN-Rail serial server converts RS485 to 10/100M Ethernet, enabling remote device monitoring and control over TCP/IP networks. Powered by a Cortex-M3 MCU with FreeRTOS, it supports Modbus TCP/RTU, MQTT, HTTP, and WebSocket protocols, with industrial-grade temperature tolerance from -40°C to +85°C. Ideal for industrial automation, it offers secure communication via AES/DES3 encryption and easy web-based configuration.
add_circle The Upside
- check Wide protocol support including MQTT and Modbus for versatile integration
- check Robust industrial design with wide temperature range and DIN-rail mounting
- check Low power consumption under 400mW
remove_circle The Downside
- close Limited to RS485 interface; no RS232 on this model
- close Plastic enclosure may be less durable in harsh environments
- close Configuration requires initial network setup via web or PC tool
Specifications & features
Key features
- check_circle RS485 to 10/100M Ethernet conversion with baud rates up to 460800 bps
- check_circle Supports TCP, UDP, MQTT, HTTP, WebSocket, and Modbus TCP/RTU protocols
- check_circle Cortex-M3 MCU at 96MHz with 2MB Flash and 128KB SRAM running FreeRTOS
- check_circle Industrial temperature range -40°C to +85°C with DIN-rail mounting
- check_circle Security protocols: TLS 1.2, AES 128-bit, DES3 encryption
Specifications
Baud Rate
600 bps - 460800 bps
Color
White
Dimensions
97.60 x 64.95 x 27.50 mm
Ethernet
1x 10/100M Base-T Auto-Negotiation
