Endsuction close coupled multistage - CM3-5 A-R-A-E-AQQE F-A-A-N
Buying option
takealot.com
Best Deal
In stockR8,769
The Story

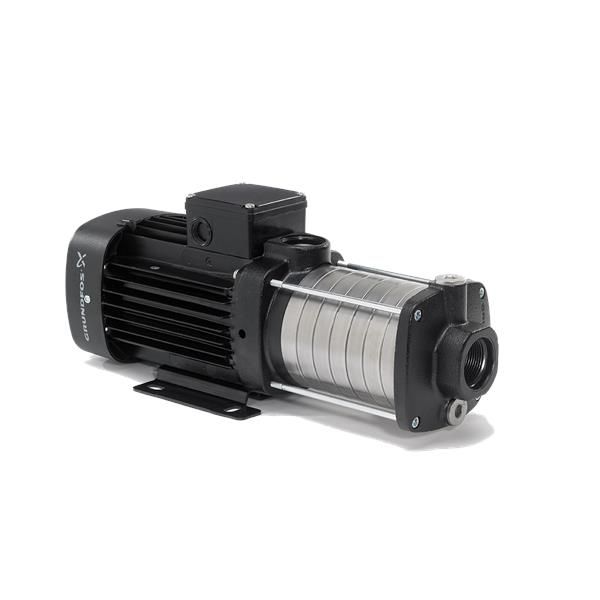

The Grundfos CM3-5 is a compact, reliable, horizontal multistage end-suction centrifugal pump designed for water circulation and pressure boosting. Featuring stainless steel shaft, impellers, and chambers with cast iron inlet and discharge parts, it ensures durability and corrosion resistance. With a 0.6 kW IE2 motor and a rated head of 34.75 m, this pump is ideal for residential, commercial, and industrial applications requiring efficient water transfer.
add_circle The Upside
- check High efficiency with IE2 motor
- check Corrosion-resistant stainless steel components
- check Compact and reliable design
remove_circle The Downside
- close No built-in motor protection
- close Not suitable for 60 Hz operation
- close Requires external frequency converter for variable speed
Specifications & features
Key features
- check_circle Stainless steel shaft, impellers, and chambers
- check_circle Cast iron inlet and discharge parts
- check_circle 3-phase, foot-mounted, fan-cooled asynchronous motor (IE2, 0.6 kW)
- check_circle Max operating pressure: 10 bar
- check_circle WRAS, ACS, NSF61 approved for drinking water
Specifications
Enclosure Class
IP55
Inlet/Outlet Connection
Rp 1 inch
Liquid Temperature Range
-20 to 90 °C
Max operating pressure
10 bar
