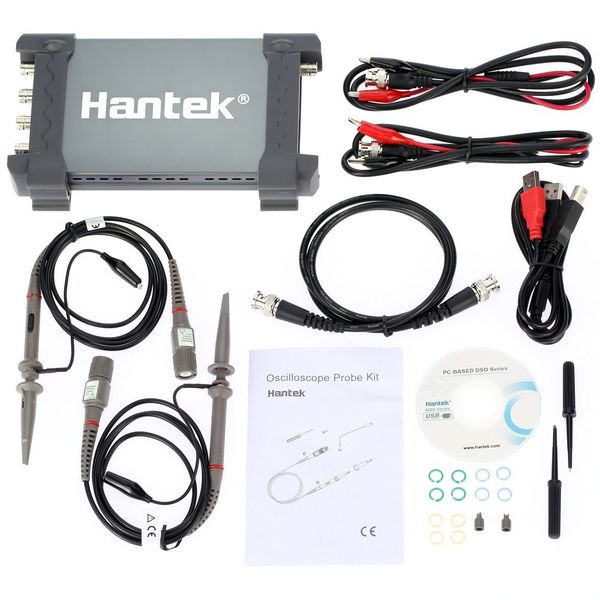

Hantek6104BD 4-Channel USB Oscilloscope & Waveform Generator
Buying option
takealot.com
Best Deal
In stockR7,995
The Story
The Hantek6104BD is a versatile 4-channel USB oscilloscope and arbitrary waveform generator, offering 100MHz bandwidth and 1GSa/s sampling rate. Its PC-based design with USB 2.0 interface allows for portable field diagnostics or convenient lab use, while the integrated waveform generator provides 12-bit vertical resolution and up to 25MHz output. With intuitive software, advanced triggering, and FFT analysis, this compact instrument is ideal for engineers and technicians needing a powerful, space-saving test solution.
add_circle The Upside
- check Portable and lightweight, ideal for field use with a laptop
- check Combines oscilloscope and waveform generator in one device
- check Intuitive software with familiar benchtop-like interface
remove_circle The Downside
- close Requires a PC for operation, not a standalone instrument
- close 8-bit vertical resolution may limit precision for some applications
- close Limited waveform generator output amplitude (±3.5V)
Specifications & features
Key features
- check_circle 4 analog channels with 100MHz bandwidth and 1GSa/s sampling rate
- check_circle Integrated arbitrary waveform generator with 12-bit resolution and 200MSa/s DDS
- check_circle USB 2.0 plug-and-play, no external power required
- check_circle 64K memory depth and comprehensive auto measurements
- check_circle Supports serial bus triggering and decoding, FFT analysis, and waveform record/replay
Specifications
Bandwidth
100 MHz
Channels
4
Dimensions
175 x 105 x 25 mm
Input Impedance
1 MΩ ∥ 25 pF
