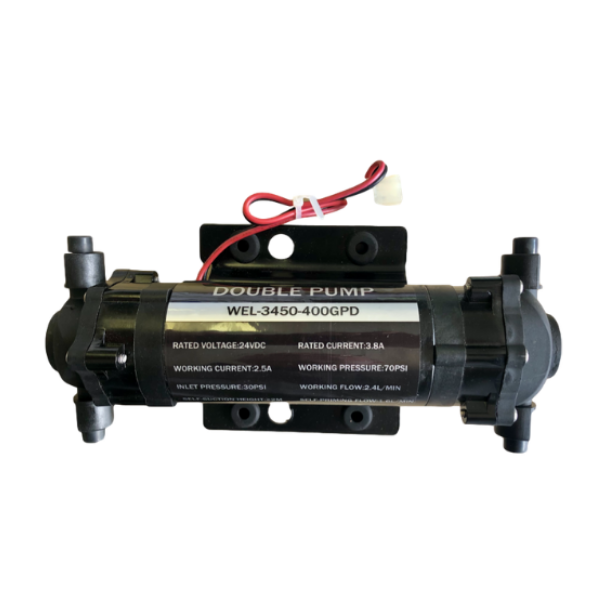

High Pressure DoubleHead 24V Diaphragm Pump 4.8bar for misting, humidifiers
Buying option
takealot.com
Best Deal
In stockR2,008
The Story
The XWEL3450 is a high-performance 24V DC double head diaphragm pump designed for demanding misting and humidification applications. With a working pressure of 4.8 bar (70 psi) and continuous operation capability, it delivers reliable pressure boosting for fine mist generation while maintaining low water consumption. Ideal for greenhouse humidifiers, mobile water systems, and other small-scale high-pressure water supply needs.
add_circle The Upside
- check High pressure output suitable for fine misting applications
- check Energy-efficient 24V DC operation with continuous running capability
- check Versatile for various water system applications including greenhouses and humidifiers
remove_circle The Downside
- close Requires additional transformer for AC power (24V DC to 220V AC)
- close Limited flow rate of 2.4 L/min may not suit high-volume applications
- close Specific installation requirements for double head tubing configuration
Specifications & features
Key features
- check_circle 24V DC operation with 4.8 bar (70 psi) working pressure
- check_circle Double head diaphragm design for pressure boosting with low volumes
- check_circle Continuous operation capability
- check_circle Self-priming with >2m suction height
- check_circle Compatible with 0.2mm mister nozzles for fine mist generation
Specifications
Rated Current
3.8 amps
Inlet Pressure
2 bar (30 psi)
Model Number
XWEL3450
Recommended Fuse
4 amp in-line
