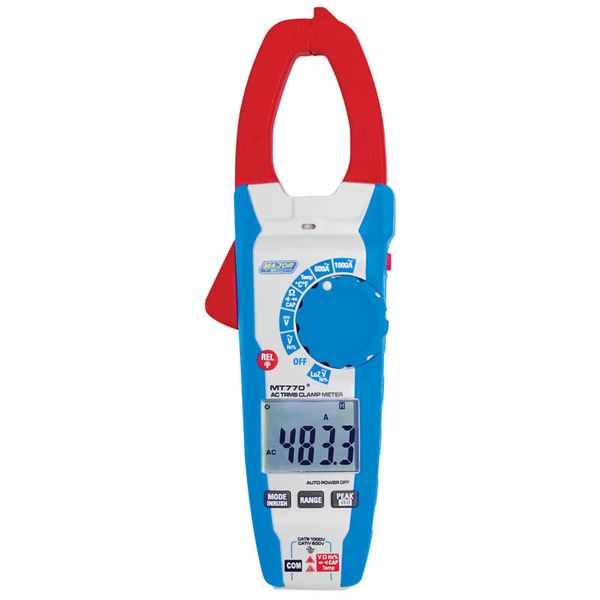

Major Tech 1000A AC True RMS Clamp Meter (MT770)
Buying option
takealot.com
Best Deal
In stockR3,140
The Story
The Major Tech MT770 is a professional-grade CAT IV 600V, 6000-count True RMS clamp meter designed for accurate AC/DC measurements up to 1000V and AC current up to 1000A. It features a large backlit LCD display, VFD function for variable frequency drives, Low Z mode to eliminate ghost voltages, and inrush current measurement. With additional capabilities including temperature, frequency, capacitance, and resistance, plus a built-in flashlight and NCV detector, this meter is ideal for electricians and technicians working in demanding environments.
add_circle The Upside
- check High safety rating (CAT IV 600V) suitable for industrial use
- check Comprehensive measurement functions including temperature and capacitance
- check Backlit display and flashlight for use in low-light conditions
remove_circle The Downside
- close AC current accuracy of ±(2.5%+8) may be less precise than higher-end models
- close Temperature accuracy of ±(5.0°C+3) is relatively low
- close No Bluetooth or data logging connectivity
Specifications & features
Key features
- check_circle True RMS AC/DC voltage and AC current measurement up to 1000V/1000A
- check_circle CAT IV 600V / CAT III 1000V safety rating
- check_circle VFD (Variable Frequency Drive) and Low Z (Low Impedance) modes
- check_circle Inrush current measurement with 100ms capture
- check_circle Non-Contact Voltage (NCV) detection and built-in flashlight
Specifications
AC Current Range
600.00A – 1000.0A
AC Voltage Range
6V – 1000V
Capacitance Range
60.00nF – 100.0mF
DC Voltage Range
600.00mV – 1000.0V
