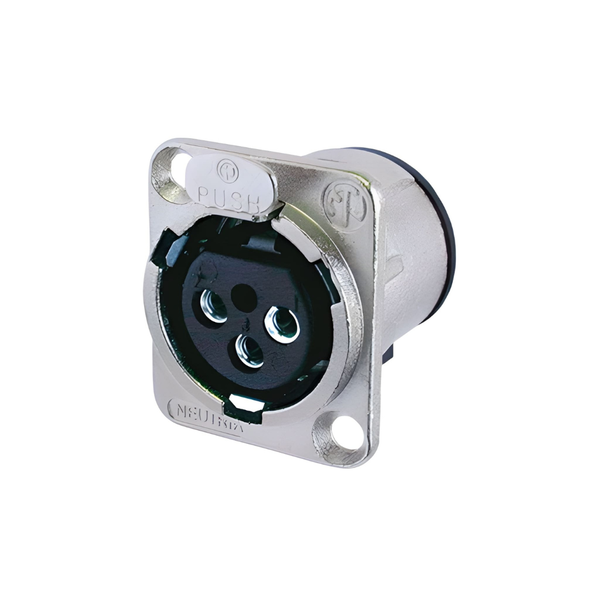

Neutrik NC3FD-V 3-Pin Female XLR Vertical PCB Mount Chassis Connector
Buying option
takealot.com
Best Deal
In stockThe Story
The Neutrik NC3FD-V is a professional-grade 3-pin female XLR chassis connector designed for vertical PCB mounting. Its rugged zinc die-cast housing with nickel plating ensures durability and corrosion resistance, while the removable insert allows for pre-assembly testing. Ideal for audio equipment, patch panels, and PCB assemblies, this connector delivers reliable performance with over 1,000 mating cycles and full compliance with UL and IEC standards.
add_circle The Upside
- check Durable construction suitable for professional environments
- check Space-saving vertical PCB mount design
- check Removable insert simplifies testing and assembly
remove_circle The Downside
- close Limited to vertical mounting orientation
- close No gold contact option in standard version
- close Requires soldering for PCB attachment
Specifications & features
Key features
- check_circle 3-pin female XLR vertical PCB mount (D-series)
- check_circle Zinc die-cast metal housing with nickel plating
- check_circle Removable insert for pre-assembly testing
- check_circle Compact vertical design for space-saving installation
- check_circle Over 1,000 mating cycles with secure locking
Specifications
Capacitance Between Contacts
< 4 pF
Connector Type
3-Pin Female XLR
Contact Resistance
< 5 mΩ
Contacts
3 female, silver-plated bronze (CuSn6)
