PR1KCO28 Combo Mimo Mobile/GNSS/Wifi Roof Sma Antenna
Buying option
takealot.com
Best Deal
In stockR1,210
The Story

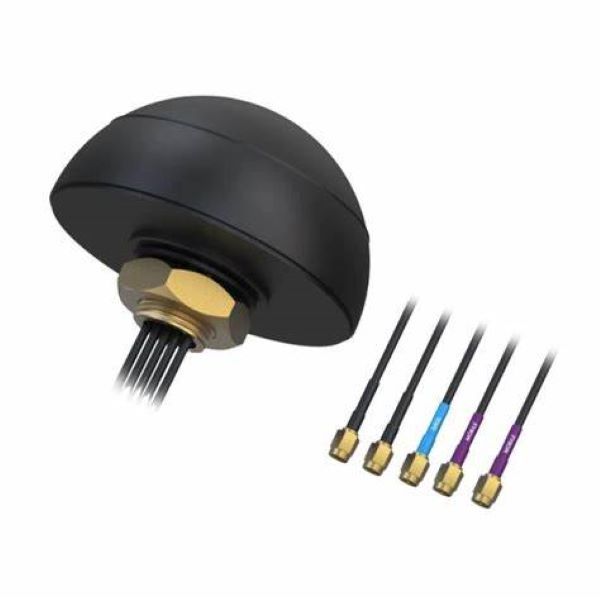

The Teltonika PR1KCO28 is a high-performance combo antenna designed for roof-mount applications, integrating GNSS, LTE MIMO, and WiFi MIMO capabilities in a single compact housing. It features a GNSS antenna with 28 dB LNA gain for precise positioning, dual LTE antennas for enhanced cellular connectivity, and dual WiFi antennas for robust wireless communication. Ideal for IoT, telematics, and mobile connectivity solutions.
add_circle The Upside
- check All-in-one design simplifies installation and reduces clutter
- check High GNSS sensitivity ensures reliable positioning even in weak signal areas
- check Wide frequency coverage supports multiple LTE and WiFi bands
remove_circle The Downside
- close Requires roof mounting, which may not be suitable for all vehicles or installations
- close SMA connectors may need adapters for some devices
- close Limited gain on WiFi antennas compared to dedicated high-gain units
Specifications & features
Key features
- check_circle Combines GNSS, LTE MIMO, and WiFi MIMO antennas in one roof-mount unit
- check_circle GNSS antenna with 28 dB LNA gain and low noise figure of 1.5 dB
- check_circle LTE MIMO antennas covering 698-960 MHz and 1710-2690 MHz with 3 dBi gain
- check_circle WiFi MIMO antennas covering 2.4-2.4835 GHz and 4.9-5.825 GHz with 2 dBi gain
- check_circle Compact housing dimensions: Ø110 x 55 mm
Specifications
GNSS Connector
SMA Male
GNSS Current Consumption
15 mA
GNSS Frequency Range
1575 ~ 1610 MHz
GNSS Impedance
50 Ω
