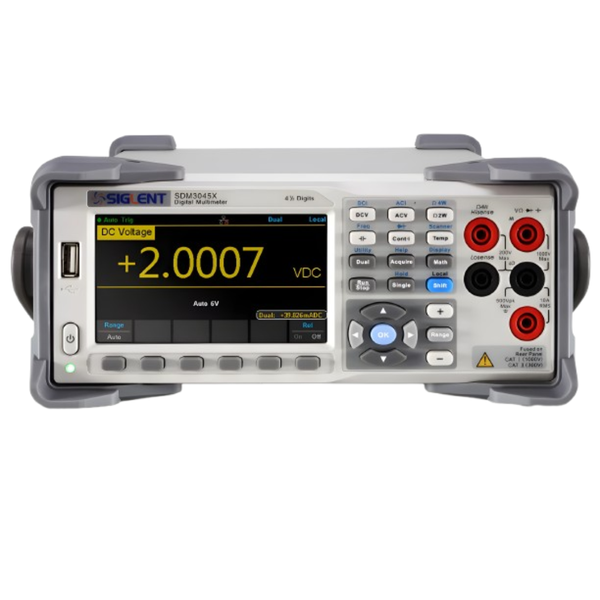

SDM3045X Siglent 4 Digit Benchtop Digital Multimeter Dual Display 4.3" TFT
Buying option
takealot.com
Best Deal
In stockR15,299
The Story
The Siglent SDM3045X is a high-performance 4.5-digit (60,000 count) benchtop digital multimeter designed for precise measurements in labs, manufacturing, and education. Its large 4.3-inch TFT-LCD dual display shows multiple parameters simultaneously, while True RMS AC measurements, 2/4-wire resistance, and extensive connectivity (USB/LAN) make it versatile for automated test systems.
add_circle The Upside
- check High accuracy and resolution for precise measurements
- check Large dual display for easy viewing of multiple parameters
- check Versatile connectivity for remote control and data logging
remove_circle The Downside
- close No built-in battery for portable use
- close Limited to 10 A DC current range
- close May be overkill for basic hobbyist needs
Specifications & features
Key features
- check_circle 4.5-digit (60,000 count) resolution
- check_circle 4.3-inch TFT-LCD dual display (480×272)
- check_circle True RMS AC voltage and current measurements
- check_circle 2-wire and 4-wire resistance measurement up to 100 MΩ
- check_circle USB Device, USB Host, and LAN interfaces with SCPI compatibility
Specifications
Capacitance Range
2 nF to 10,000 μF
DC Current Range
600 μA to 10 A
DC Voltage Range
600 mV to 1000 V
Display
4.3" TFT-LCD, 480×272, dual display
