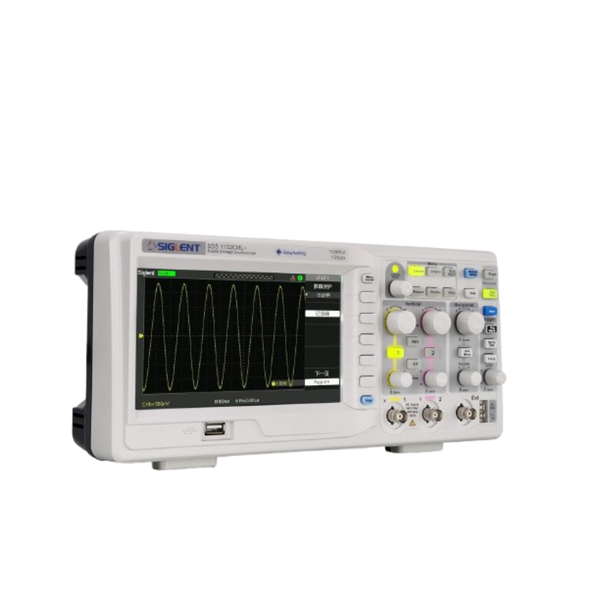

Siglent SDS1102CML+ Digital Oscilloscope 100MHz 1GSa/s 2CH+EXT 7" TFT LCD
Buying option
takealot.com
Best Deal
In stockR11,999
The Story
The Siglent SDS1102CML+ is a high-performance dual-channel digital oscilloscope with 100 MHz bandwidth and 1 GSa/s sampling rate, ideal for precision measurement in professional, industrial, and educational settings. Its 7-inch TFT-LCD display and 2 Mpts memory depth enable detailed waveform analysis, while advanced trigger types and built-in math functions (including FFT) provide versatile signal insights. With USB, LAN, and Pass/Fail interfaces, it supports remote control and automated testing, making it a reliable tool for engineers and technicians.
add_circle The Upside
- check High bandwidth and sampling rate for accurate signal capture
- check Large memory depth for detailed analysis
- check Comprehensive connectivity options (USB, LAN) for remote control
remove_circle The Downside
- close 8-bit vertical resolution may be limiting for some precision applications
- close No built-in function generator or arbitrary waveform generation
- close Relatively basic display resolution compared to higher-end models
Specifications & features
Key features
- check_circle 100 MHz bandwidth with 1 GSa/s sampling rate
- check_circle 2 analog channels plus external trigger input
- check_circle 7-inch TFT-LCD display with 800x480 resolution
- check_circle 2 Mpts memory depth for long-duration capture
- check_circle Multiple trigger types (Edge, Pulse, Video, Slope, Alternate) and built-in FFT
Specifications
Bandwidth
100 MHz
Channels
2 + External
Dimensions
323 x 135 x 157 mm
Display
7-inch TFT-LCD, 800x480
