testo 510 Differential Pressure Measuring Instrument Set
Buying option
takealot.com
Best Deal
In stockR4,488
The Story

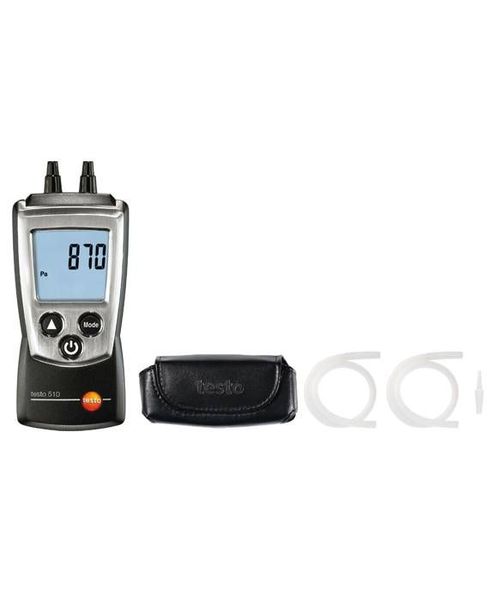

The Testo 510 is a professional-grade differential pressure measuring instrument designed for HVAC and sanitary system technicians. This compact, versatile tool measures differential pressure from 0 to 100 hPa with temperature and air density compensation for precise readings, and offers flow measurement capabilities when used with an optional Pitot tube. Complete with silicone connection hose, protective cap, belt pouch, and calibration protocol, this set provides everything needed for accurate system maintenance and installation work.
add_circle The Upside
- check High accuracy with compensation for temperature and air density variations
- check Versatile with multiple measurement units and flow measurement capability
- check Practical design with magnets for hands-free use and included carrying accessories
remove_circle The Downside
- close Requires optional Pitot tube for flow measurements (not included in base set)
- close Limited to IP40 protection class, not suitable for wet or dusty environments
- close Battery life of 50 hours may require frequent replacement during extended use
Specifications & features
Key features
- check_circle Differential pressure measurement from 0 to 100 hPa with temperature and air density compensation
- check_circle Flow measurement capability with optional Pitot tube (10-100 m/s)
- check_circle Magnets on rear for hands-free operation in confined spaces
- check_circle 10 selectable measurement units including Pa, hPa, mbar, mmH2O, and psi
- check_circle Compact design with illuminated display and simple three-button operation
Specifications
Accuracy
±0.03 hPa (0-0.30 hPa), ±0.05 hPa (0.31-1.00 hPa), ±(0.1 hPa + 1.5% of mv) (1.01-100 hPa)
Battery Life
50 hours (average, without display illumination)
Battery Type
2 AAA micro batteries
Dimensions
119 x 46 x 25 mm
