Texas Instruments (CD74HC4024E .) Binary Ripple Counter, 35 MHz
Buying option
takealot.com
Best Deal
In stockThe Story

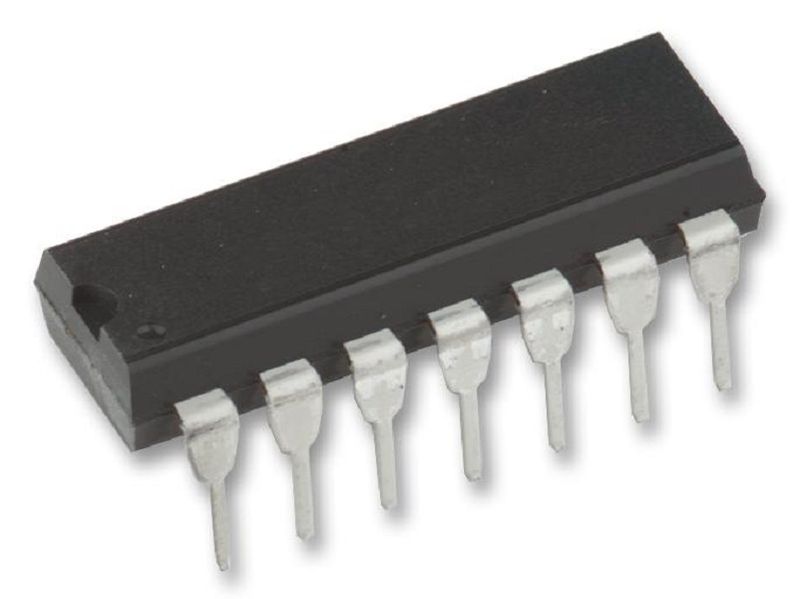

The Texas Instruments CD74HC4024E is a high-speed binary ripple counter featuring seven stages and a maximum clock frequency of 35 MHz. Operating over a wide supply voltage range of 2 V to 6 V, this DIP-14 packaged IC is ideal for frequency division, timing, and counting applications in digital systems. With a robust operating temperature range from -55°C to 125°C, it ensures reliable performance in demanding environments.
add_circle The Upside
- check High-speed operation suitable for many digital applications
- check Wide voltage range allows flexible power supply design
- check Extended temperature range for industrial and automotive use
remove_circle The Downside
- close Through-hole package may not suit compact SMD designs
- close Limited to 7-bit counting; not suitable for higher bit counts
Specifications & features
Key features
- check_circle 7-stage binary ripple counter
- check_circle Maximum clock frequency of 35 MHz
- check_circle Wide supply voltage range: 2 V to 6 V
- check_circle DIP-14 package for easy through-hole mounting
- check_circle Operating temperature range: -55°C to 125°C
Specifications
Clock Frequency
35 MHz
Counter Type
Binary Ripple
Logic Case Style
DIP-14
Logic Family
74HC
