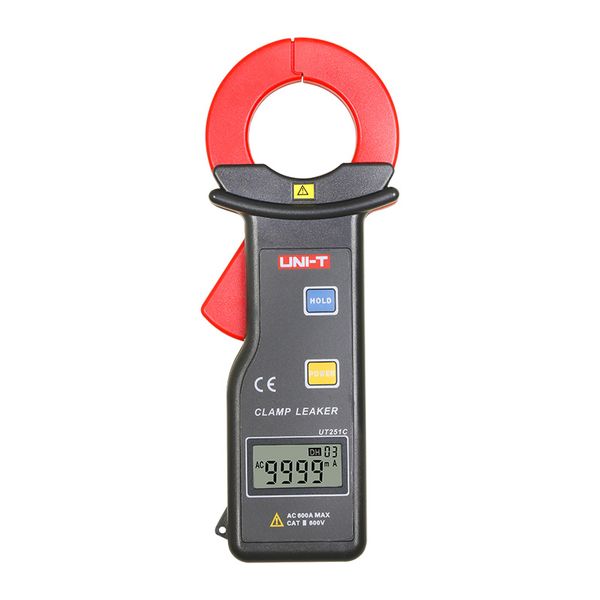

UNI-T UT251C High Sensitivity Leakage Current Clamp Meters
Buying option
takealot.com
Best Deal
In stockR5,399
The Story
The UNI-T UT251C is a high-accuracy leakage current clamp meter designed for testing AC leakage current in motors, home appliances, and other electrical equipment up to 600A. Featuring a 4-digit LCD display with 10000 counts, auto-ranging, and data hold, it offers precise measurements and convenient operation. With RS-232 interface and storage for 99 sets of data, it's ideal for professional electricians and maintenance technicians.
add_circle The Upside
- check High accuracy and sensitivity for leakage current detection
- check Large clamp opening (35mm x 40mm) for accommodating thick conductors
- check Includes RS-232 interface for PC connectivity
remove_circle The Downside
- close No true RMS measurement for non-sinusoidal waveforms
- close Limited voltage measurement range (0-600V) and frequency only 50/60Hz
- close Auto power off after 5 minutes may be inconvenient for long tests
Specifications & features
Key features
- check_circle High sensitivity leakage current measurement from 0.001mA to 600A
- check_circle 4-digit LCD display with 10000 counts and auto-ranging
- check_circle Data hold and peak hold functions
- check_circle RS-232 interface for data transfer
- check_circle Stores up to 99 sets of data
Specifications
Accuracy (Leakage Current)
±(1.5%+5) up to 60A, ±(2%+5) up to 199.9A, ±(3%+5) up to 300A, ±(4%+5) up to 600A
Auto Power Off
5 minutes
Clamp Size
35mm x 40mm
Data Storage
99 sets
