1X 5A 12V/24V Push Button Resettable Thermal Circuit Breaker
Buying option
takealot.com
Best Deal
In stockThe Story

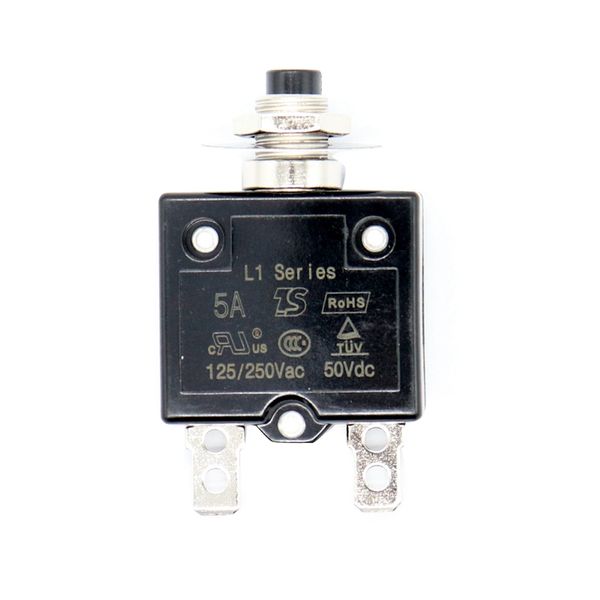

This 5A push button resettable thermal circuit breaker is designed for overcurrent protection in a wide range of applications, including automotive, marine, and industrial equipment. It features a manual reset mechanism that pops out when overloaded and can be easily reset by pushing the button back in. Compact and durable, it mounts in a 3/8-inch round hole and is suitable for 12V or 24V systems.
add_circle The Upside
- check Resettable, reducing need for replacement
- check Wide voltage range suitable for various applications
- check Easy to install in standard 3/8-inch hole
remove_circle The Downside
- close Not designed for manual on/off switching
- close Limited to 5A, not suitable for higher current loads
- close Operating temperature range -10°C to 60°C may not suit extreme environments
Specifications & features
Key features
- check_circle Rated current: 5A
- check_circle Voltage rating: 125-250VAC, 50VDC
- check_circle Manual reset with push-to-reset button
- check_circle Compact size: 35.0 x 31.0 x 14.6 mm
- check_circle Interrupt capacity: 1,000 Amps
Specifications
Dimensions
35.0 x 31.0 x 14.6 mm
Interrupt Capacity
1,000 Amps
Material
Plastic + Metal
Mounting
3/8 inch (10 mm) round hole
