20A 1200W Constant Voltage Constant Current Repairing Step-Down Plate
Buying option
takealot.com
Best Deal
In stockThe Story

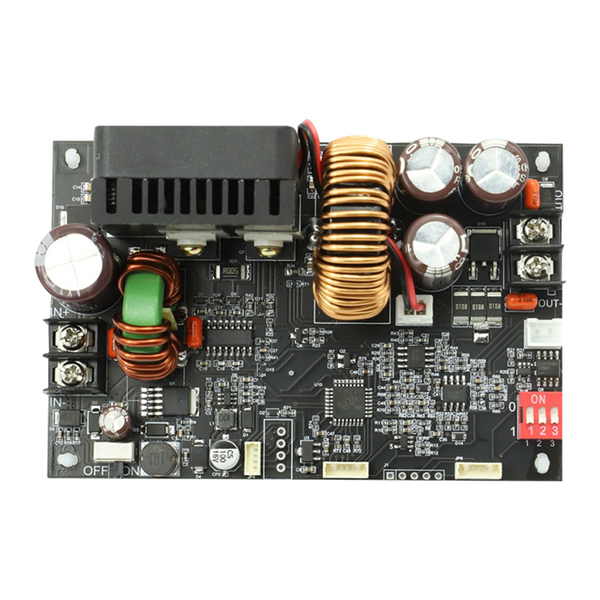

This high-power step-down plate delivers up to 20A and 1200W, featuring constant voltage and constant current modes. Built with a solid PCB and electronic components, it includes a common-mode inductor for low ripple output and intelligent temperature control with a large heatsink and fan for efficient heat dissipation. The output voltage can be set via DIP switch to 5/9/12/24/36/48/60V, and the base plate supports remote control via TTL to 485 or WiFi modules for multi-unit management.
add_circle The Upside
- check High power capacity suitable for various applications
- check Flexible voltage selection via DIP switch
- check Remote control capability for automated systems
remove_circle The Downside
- close No enclosure, exposed PCB may require additional protection
- close Input power supply not included
- close Requires basic electronics knowledge for setup
Specifications & features
Key features
- check_circle 20A 1200W constant voltage/constant current output
- check_circle DIP switch selectable fixed voltages: 5/9/12/24/36/48/60V
- check_circle Low ripple output with common-mode inductor
- check_circle Intelligent temperature control with fan and large heatsink
- check_circle Supports remote control via TTL to 485 or WiFi modules
Specifications
Board Dimensions
72 x 109 x 42 mm
Cooling
Intelligent fan + heatsink
Input Voltage
Not specified (typical 12-60V)
Output Current
0-20A adjustable
