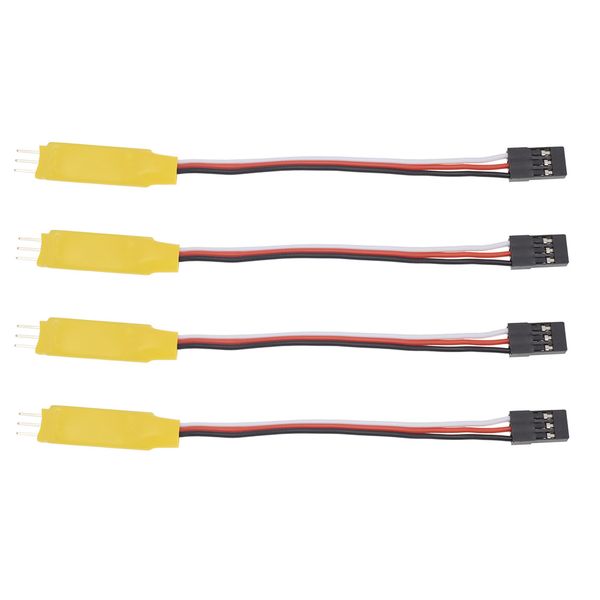

4PCS 90 to 180 Degree Servo Expander Increase Steering Gear Angle Extender
Buying option
takealot.com
Best Deal
In stockR294
The Story
This servo expander module allows you to extend the rotation angle of your RC servo from 90 degrees to 180 degrees by converting the PWM signal range from 1000-2000us to 500-2500us. It is ideal for applications like robot arms and homemade sailboats where extended servo movement is needed. The compact board size (25x9mm) and included 10cm 3P cable make it easy to integrate into your projects.
add_circle The Upside
- check Easy to install and use
- check Expands servo functionality without replacing hardware
- check Compact design fits in tight spaces
remove_circle The Downside
- close Requires servo that supports 180° rotation internally
- close May cause motor stall if servo hits mechanical limit
- close Limited to PWM signal conversion only
Specifications & features
Key features
- check_circle Converts 90° servo control to 180° range
- check_circle Compatible with 3.6-16V input voltage
- check_circle Compact board size: 25x9mm
- check_circle Includes 10cm 3P cable and plug
- check_circle Works with 500-2500us compatible servos
Specifications
Board Dimensions
25x9mm
Cable Length
10cm
Input PWM Range
1000-2000us
Input Voltage
3.6-16V
