Inline multistage pumps - CR 1-17 A-FGJ-A-E-HQQE
Buying option
takealot.com
Best Deal
In stockR19,459
The Story

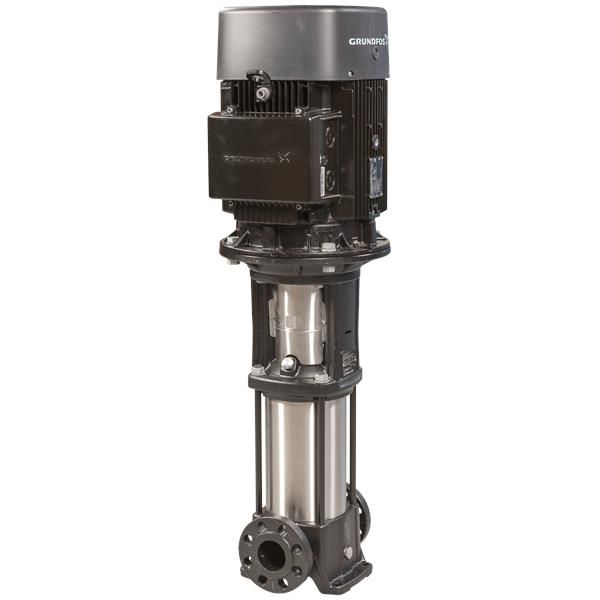

The Grundfos CR 1-17 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for inline installation, featuring cast iron head and base with stainless steel wetted parts for durability and corrosion resistance. Equipped with a cartridge shaft seal for reliability and easy maintenance, and a 3-phase fan-cooled IE3 motor for energy efficiency, this pump delivers a rated flow of 1.8 m³/h and head of 80.1 m, making it ideal for water supply, pressure boosting, and industrial applications.
add_circle The Upside
- check High efficiency and energy savings with IE3 motor
- check Corrosion-resistant stainless steel wetted parts
- check Easy maintenance with cartridge shaft seal
remove_circle The Downside
- close Heavy weight (33.2 kg) may require sturdy mounting
- close Limited to water and similar liquids within temperature range
- close Requires proper electrical setup for 3-phase power
Specifications & features
Key features
- check_circle Vertical multistage centrifugal design with inline ports
- check_circle Cast iron head and base, stainless steel impeller and other wetted parts
- check_circle Cartridge shaft seal for high reliability and easy service
- check_circle IE3 efficiency class motor with 1.1 kW power
- check_circle Combined DIN/ANSI/JIS flanges for versatile connection
Specifications
Connection Size
DN 25/32
Frequency
50 Hz
Liquid Temperature Range
-20 to 120 °C
Material (Base)
Cast iron EN 1561
