Localization and Tracking Radar Module On-Board PCB Antenna
Price Comparison
Save R 177takealot.com
Best Deal
In stockThe Story

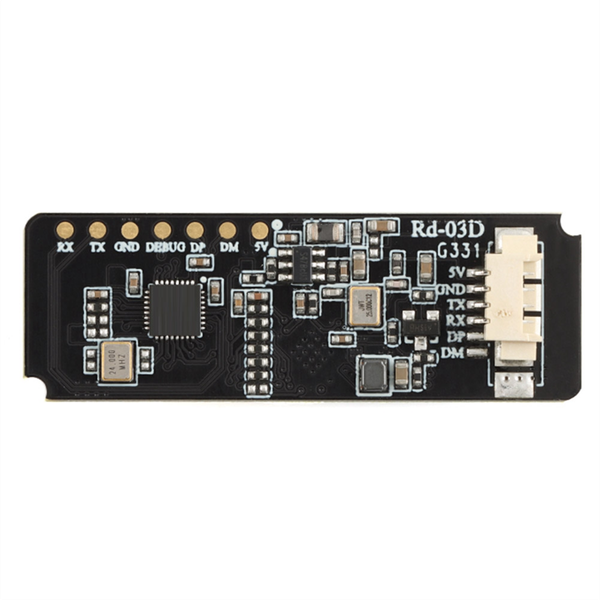

The Rd-03D is a high-performance 24GHz FMCW radar module featuring the Silicon Microelectronics S5KM312CL SoC, which integrates a microcontroller and millimeter-wave sensor. It enables precise motion detection, trajectory tracking, and distance/speed measurement of multiple targets in real time. With an on-board PCB antenna and intelligent algorithms, it is ideal for smart lighting, presence sensing, and automation applications, offering low power consumption and robust interference immunity.
add_circle The Upside
- check Low power consumption and fast recognition speed
- check Immune to WiFi and other wireless interference
- check Supports motion, micro-motion, and static human detection
remove_circle The Downside
- close Limited to 24-24.25GHz frequency range
- close Requires 5V power supply at 200mA
- close No built-in housing; exposed PCB may need enclosure
Specifications & features
Key features
- check_circle 24GHz K-band FMCW radar with 0.25GHz sweep bandwidth
- check_circle Integrated S5KM312CL SoC with MCU and radar signal processing
- check_circle On-board PCB antenna for compact design
- check_circle Real-time multi-target detection, tracking, and distance/speed measurement
- check_circle UART interface with default 256000 bps baud rate
Specifications
Antenna
On-board PCB antenna
Color
Black
Dimensions
15.0 x 44.0 mm
Frequency
24 GHz - 24.25 GHz
