Multicomp Pro (6MS1S2M1RE) Slide Switch, SPDT, On-On, Through Hole
Price Comparison
Save R 31takealot.com
Best Deal
In stockThe Story

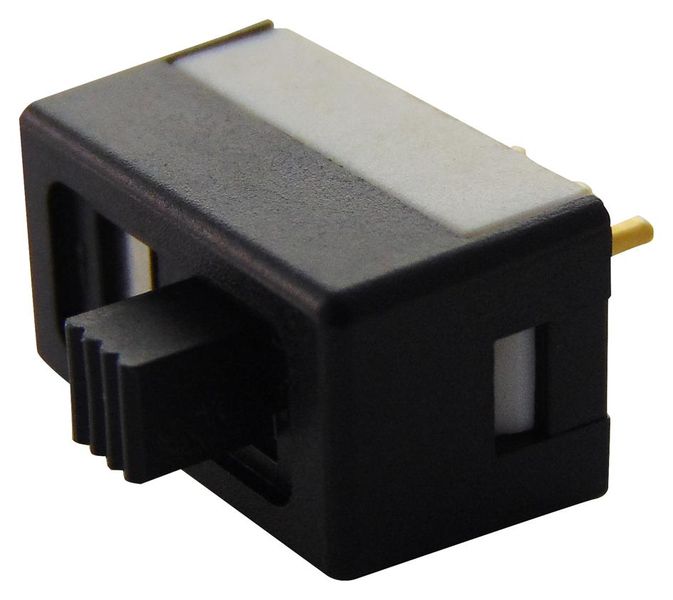

The Multicomp Pro 6MS1S2M1RE is a miniature SPDT slide switch with an On-On function, designed for through-hole mounting. Featuring a top actuator and gold-plated copper alloy contacts, it offers reliable switching for industrial applications. With a contact rating of 100mA at 20V AC/DC, this switch is built for durability and consistent performance.
add_circle The Upside
- check Compact size suitable for space-constrained designs
- check Gold-plated contacts ensure reliable low-current switching
- check Wide operating temperature range (-40 to +80°C)
remove_circle The Downside
- close Limited to low current (100mA) and voltage (20V)
- close No panel-mount option; requires PCB mounting
- close Actuator may be too small for some applications
Specifications & features
Key features
- check_circle SPDT (Single Pole Double Throw) contact configuration
- check_circle On-On switch operation
- check_circle Through-hole mounting with PC terminals
- check_circle Gold-plated copper alloy contacts for low resistance
- check_circle Black nylon housing and white nylon case
Specifications
Actuator Type
Top Actuator
Contact Configuration
SPDT
Contact Current Max
100 mA
Contact Resistance
50 mΩ max
