Multicomp Pro (FDD2-187(8)) Quick Disconnect Terminal, FDD2, Female
Buying option
takealot.com
Best Deal
In stockR1,105
The Story

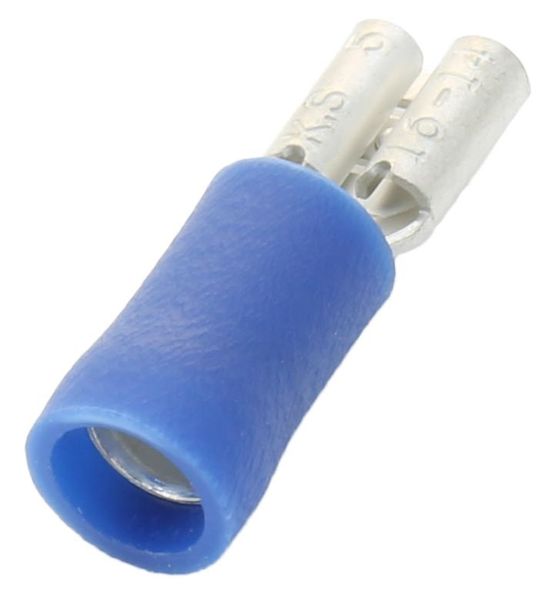

These Multicomp Pro FDD2-187(8) female quick disconnect terminals are designed for reliable and secure electrical connections. Featuring a blue vinyl insulation and brass/copper terminals with electro tin plating, they prevent oxidization and ensure easy cable entry. Each pack contains 100 terminals, suitable for 22 to 16 AWG wire gauges, with a rated current of 10A and voltage of 600V at 105°C.
add_circle The Upside
- check Easy cable entry guide eliminates flared wire strands
- check Bright electro tinned finish prevents corrosion
- check Digit indented above crimp for correct usage verification
remove_circle The Downside
- close Limited to 22-16 AWG wire sizes
- close Vinyl insulation may not suit high-temperature environments above 105°C
- close Pack of 100 may be excessive for small projects
Specifications & features
Key features
- check_circle Female quick disconnect terminal, 4.75mm x 0.81mm tab size
- check_circle Blue vinyl insulation with brass/copper terminals
- check_circle Electro tin plated finish to prevent oxidization
- check_circle Accepts 22 to 16 AWG wire gauge
- check_circle Rated 10A, 600V at 105°C
Specifications
Conductor Area CSA
2.5mm²
Insulator Colour
Blue
Insulator Material
Vinyl
Maximum Voltage
600V
