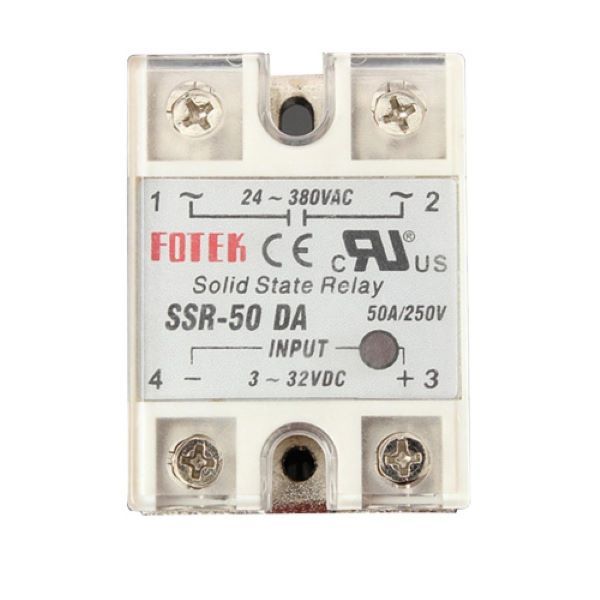

Solid State Relay SSR-50DA
Buying option
takealot.com
Best Deal
In stockThe Story
The SSR-50DA solid state relay enables safe and efficient control of high-current AC loads up to 50A using low-voltage DC input signals. With no moving parts, it offers superior reliability and faster switching compared to mechanical relays, making it ideal for industrial automation, HVAC systems, and power control applications.
add_circle The Upside
- check Long lifespan with no moving parts to wear out
- check Faster switching compared to mechanical relays
- check Can be controlled with low-voltage DC circuits
remove_circle The Downside
- close May require heat sinking for high-current applications
- close Typically more expensive than equivalent mechanical relays
- close Limited to AC load switching (not suitable for DC loads)
Specifications & features
Key features
- check_circle 50A rated load current capacity
- check_circle 3-32VDC input voltage range
- check_circle 24-380V AC output voltage range
- check_circle Fast response time with normally open default state
- check_circle Compact dimensions (~63x45x23mm)
Specifications
Default Output State
Normally Open (NO)
Dimensions
~63x45x23mm (with cover)
Input Current
7.5mA/12V
Input Voltage
3-32VDC
