TB6560 3A Single Axis Step Motor Controller
Price Comparison
Save R 34takealot.com
Best Deal
In stockThe Story

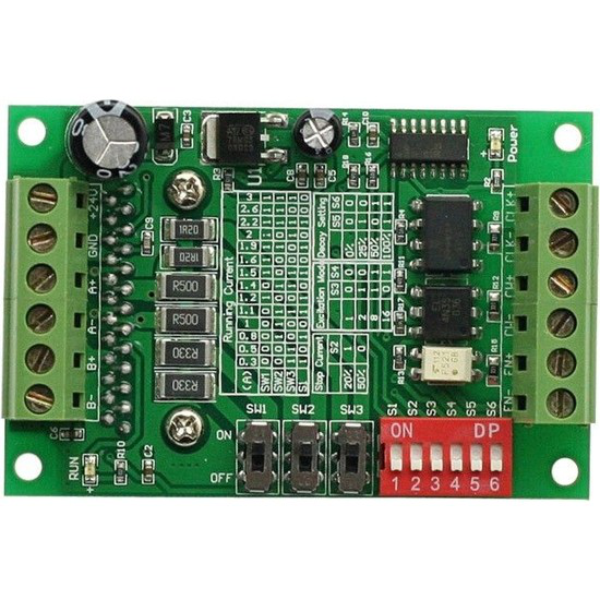

The TB6560 stepper motor driver is a reliable and efficient solution for controlling 42, 57, and 86 stepper motors with up to 3A current. Featuring the Toshiba TB6560AHQ chip and a 6N137 high-speed optocoupler, it ensures high-speed operation without step loss. With built-in protections against overheating, over-current, and low voltage, this driver delivers consistent performance for various automation projects.
add_circle The Upside
- check High-speed operation with minimal step loss
- check Comprehensive protection features ensure durability
- check Adjustable decay settings for fine-tuning motor performance
remove_circle The Downside
- close Requires external power supply (10-35V DC)
- close Limited to single-axis control
- close May need additional heatsinking for continuous high-current use
Specifications & features
Key features
- check_circle Toshiba TB6560AHQ chip for reliable performance
- check_circle Selectable excitation modes: 1/1, 1/2, 1/8, 1/16 step
- check_circle Adjustable decay settings (0%/25%/50%/100%)
- check_circle Overheating, over-current, and low-voltage protection
- check_circle 6N137 high-speed optical coupling for noise immunity
Specifications
Dimensions
50 x 75 x 35 mm
Excitation Modes
1/1, 1/2, 1/8, 1/16 step
Microchip
Toshiba TB6560AHQ
Operating Voltage
10V to 35V (Recommended 24V DC)
