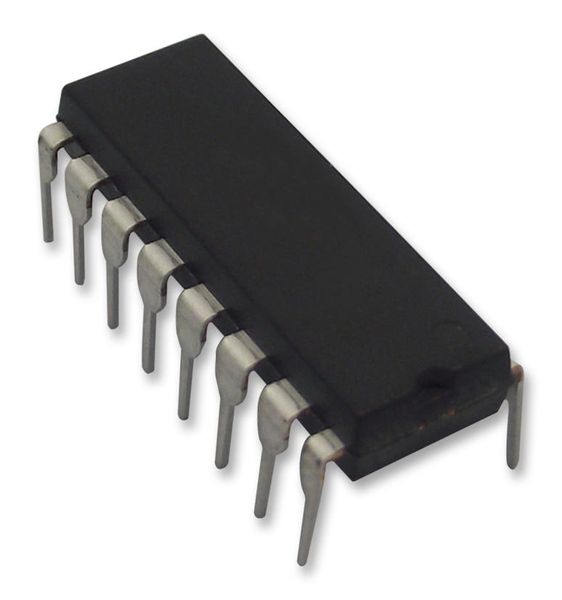

Texas Instruments (CD4017BE) Decade Counter / Divider, 11 MHz,
Price Comparison
Save R 55takealot.com
Best Deal
In stockThe Story
The CD4017BE is a 5-stage Johnson decade counter with 10 decoded outputs, ideal for clock and timing applications. It operates over a wide supply voltage range of 3V to 18V and features Schmitt trigger action on the clock input for noise immunity. This IC is fully static, offers standardized symmetrical output characteristics, and is suitable for use in automation, instrumentation, and embedded design.
add_circle The Upside
- check High-speed operation with spike-free outputs
- check Wide operating temperature range (-55°C to 125°C)
- check Versatile for various logic and timing applications
remove_circle The Downside
- close Through-hole DIP package may not suit compact designs
- close Limited to 10 decoded outputs; not expandable without additional ICs
- close Requires external clock source
Specifications & features
Key features
- check_circle 5-stage Johnson counter with 10 decoded outputs
- check_circle Clock frequency up to 11 MHz
- check_circle Wide supply voltage range: 3V to 18V
- check_circle Schmitt trigger clock input for pulse shaping
- check_circle Fully static operation with anti-lock gating
Specifications
Clock Frequency
11 MHz
Counter Type
Decade/Divider
Logic Case Style
DIP
Logic Family
CD4000
